A C++ wrapper for a wfio_device_t. More...

#include <device.h>

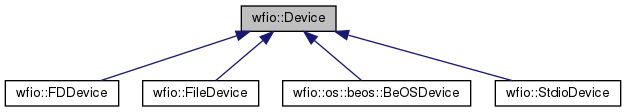

Inheritance diagram for wfio::Device:

[legend]

Classes
class	CXXStrategy
	A strategy for a device. More...

Public Types
typedef ::wfio_device_t *	CType
	The C type from which a Device is derived.

Public Member Functions
	Device ()
	Construct the default Device. More...

	Device (CType dev, bool acquire=true)
	Wrap a wfio_device_t. More...

	Device (CType dev, IOShare ioshare)
	Wrap a wfio:device_t using an IOShare. More...

WFIO_CXX_DLL	Device (CXXStrategy *strategy)
	Create a new Device from a CXXStrategy. More...

	Device (const Device &dev)
	Copy-construct a device. More...

	~Device ()
	Release this Device. More...

size_t	read (void *buf, size_t sz, size_t elem)
	Write elements to this Device. More...

size_t	read (void *buf, size_t len)
	Write a vector of bytes to this Device. More...

int	read ()
	Read a single byte from this Device. More...

size_t	write (const void *buf, size_t sz, size_t elem)
	Write a vector of elements to this Device. More...

size_t	write (const void *buf, size_t len)
	Write a vector of bytes to this Device. More...

bool	write (char c)
	Write a single byte to this Device. More...

bool	seek (wfio_off_t offset, wfio_whence_t whence)
	Seek to a position in this Device. More...

wfio_off_t	tell () const
	Determine the current stream position of this Device. More...

Device	dup ()
	Duplicate this Device. More...

bool	flush ()
	Attempt to flush this Device. More...

size_t	bufsz (size_t len)
	Set the buffer size for this Device. More...

size_t	bufsz () const
	Obtain the buffer size for this Device. More...

bool	buffered () const
	Determine whether or not the device is buffered. More...

int	dcntl (::wfio_dcntl_t cmd,...)
	Perform device-independent I/O control on this Device. More...

int	ioctl (int cmd,...)
	Perform device-dependent I/O control on this Device. More...

int	flags () const throw ()
	Obtain the flags vector associated with this Device.

int	ecode () const throw ()
	Obtain the error code associated with this Device.

void	ecode (int ecode) throw ()
	Set the error code associated with this Device. More...

bool	valid () const throw ()
	Determine if this Device is valid. More...

	operator bool () const throw ()
	Synonymous with this->valid(). More...

	operator::wfio_device_t * () throw ()
	Implicitly convert this Device into it's C equivalent.

WFIO_CXX_DLL Device &	operator= (const Device &rhs)
	Perform assignment on this Device. More...

Detailed Description

A C++ wrapper for a wfio_device_t.

Constructor & Destructor Documentation

◆ Device() [1/5]

wfio::Device::Device ( )

inline

Construct the default Device.

This constructor creates an invalid Device.

◆ Device() [2/5]

wfio::Device::Device	(	CType	dev,
		bool	acquire = `true`
	)

inline

Wrap a wfio_device_t.

Parameters

dev	The device to wrap.
acquire	Whether or not the device should be acquired as a consequence of constructing this object.

Note: If you want to disown the previous ownership of dev from the context in which it is called, then acquire should be false.

◆ Device() [3/5]

wfio::Device::Device	(	CType	dev,
		IOShare	ioshare
	)

inline

Wrap a wfio:device_t using an IOShare.

Parameters

dev	The device to wrap.
ioshare	The sharing mode to use.

Note: This is similar to initializing the device using wfio_device_ioshare().

◆ Device() [4/5]

WFIO_CXX_DLL wfio::Device::Device ( CXXStrategy * strategy )

Create a new Device from a CXXStrategy.

Parameters

strategy The CXXStrategy used to implement this device.

This constructor accepts a CXXStrategy and wraps it around an appropriate CType, which takes direct ownership of the CType. This device therefore indirectly owns strategy.

◆ Device() [5/5]

wfio::Device::Device ( const Device & dev )

inline

Copy-construct a device.

Thie constructor acquires the underlying CType and sets it as this Device's underyling CType.

◆ ~Device()

wfio::Device::~Device ( )

inline

Release this Device.

This destructor releases this Device's underylying CType.

Member Function Documentation

◆ buffered()

bool wfio::Device::buffered ( ) const

inline

Determine whether or not the device is buffered.

Returns: True iff the device is buffered.

Note: When the buffer size if WFIO_NPOS, this function will claim that the device is buffered. This is done because flushing does not adversely affect the operation of the stream if the

◆ bufsz() [1/2]

size_t wfio::Device::bufsz ( size_t len )

inline

Set the buffer size for this Device.

Parameters

sz	The requested size to set.

Returns: The size of the buffer after this operation; otherwise, WFIO_NPOS. A return value of zero shall indicate that device is unbuffered.

Note: When the buffer size is immutable or the device cannot be buffered, but is otherwise known, then the size of the buffer is returned.

◆ bufsz() [2/2]

size_t wfio::Device::bufsz ( ) const

inline

Obtain the buffer size for this Device.

Returns: The size of the buffer associated with this device on success; otherwise, WFIO_NPOS. A return value of zero shall indicate that the device is unbuffered.

◆ dcntl()

int wfio::Device::dcntl	(	::wfio_dcntl_t	cmd,
			...
	)

inline

Perform device-independent I/O control on this Device.

Parameters

cmd	The command to send to the device.
...	Additional arguments to the dcntl.

Returns: A return value peculiar to the command invoked.

Note: It is not sufficient to look at the return value from this function to determine failure because the return value is dependent on the dcntl command. Instead, check he value of ecode; if the value is WFIO_E_SUCCESS, then no error has occurred.; If NULL is passed, zero shall be returned.

◆ dup()

Device wfio::Device::dup ( )

inline

Duplicate this Device.

Returns: A new Device; on failure, the Device is invalid.

◆ ecode()

void wfio::Device::ecode	(	int	ecode	)
throw	(
	)

inline

Set the error code associated with this Device.

Parameters

ecode the new error code to set.

◆ flush()

bool wfio::Device::flush ( )

inline

Attempt to flush this Device.

Returns: True iff the flush operation is successful.

◆ ioctl()

int wfio::Device::ioctl	(	int	cmd,
			...
	)

inline

Perform device-dependent I/O control on this Device.

Parameters

dev	The device to ioctl.
cmd	The command to send to the device.
...	Additional arguments to the ioctl.

Returns: A return value peculiar to the command invoked.

Note: It is not sufficient to look at the return value from this function to determine failure because the return value is dependent on the dcntl command. Instead, check he value of ecode; if the value is WFIO_E_SUCCESS, then no error has occurred.

◆ operator bool()

wfio::Device::operator bool	(	)	const
throw	(
	)

inline

Synonymous with this->valid().

Returns: True if this object is valid.

◆ operator=()

WFIO_CXX_DLL Device& wfio::Device::operator= ( const Device & rhs )

Perform assignment on this Device.

Parameters

rhs	The device to assign to this one.

If rhs does not refer to the same CType as this one, then the current CType is released, rhs's CType is acquired. Thereafter, this Device shall refer to the same instance as rhs,

Returns: This device.

◆ read() [1/3]

size_t wfio::Device::read	(	void *	buf,
		size_t	sz,
		size_t	elem
	)

inline

Write elements to this Device.

Parameters

buf	The buffer to write from.
sz	The size of each elements.
sz	The maximum number of elements to write.

Returns: The number of elements actually written on success; otherwise, WFIO_NPOS.

Note: This method may set ecode.

◆ read() [2/3]

size_t wfio::Device::read	(	void *	buf,
		size_t	len
	)

inline

Write a vector of bytes to this Device.

Parameters

buf	The buffer to write from.
len	The maximum number of bytes to write.

Returns: The number of bytes actually written on success; otherwise, WFIO_NPOS.

◆ read() [3/3]

int wfio::Device::read ( )

inline

Read a single byte from this Device.

Returns: The value of the byte read on success; otherwise, WFIO_NPOS.

◆ seek()

bool wfio::Device::seek	(	wfio_off_t	offset,
		wfio_whence_t	whence
	)

inline

Seek to a position in this Device.

Parameters

offset	The offset relative to `whence` to seek to.
whence	The origin added to `whence` to seek to.

Returns: True iff the seek was successful.

◆ tell()

wfio_off_t wfio::Device::tell ( ) const

inline

Determine the current stream position of this Device.

Returns: The current stream position of the device on success; otherwise, WFIO_NPOS.

◆ valid()

bool wfio::Device::valid	(	)	const
throw	(
	)

inline

Determine if this Device is valid.

This function determines whether or not this Device can be operated on. It is valid iff its underlying pointer is not null.

Returns: True if this object is valid.

◆ write() [1/3]

size_t wfio::Device::write	(	const void *	buf,
		size_t	sz,
		size_t	elem
	)

inline

Write a vector of elements to this Device.

Parameters

buf	The buffer to write from.
sz	The size of each elements.
elem	The maximum number of elements to write.

Returns: The number of elements actually written on success; otherwise, WFIO_NPOS.

Note: This method may set ecode.

◆ write() [2/3]

size_t wfio::Device::write	(	const void *	buf,
		size_t	len
	)

inline

Write a vector of bytes to this Device.

Parameters

buf	The buffer to write from.
len	The maximum number of bytes to write.

Returns: The number of bytes actually written on success; otherwise, WFIO_NPOS.

Note: This method may set ecode.

◆ write() [3/3]

bool wfio::Device::write ( char c )

inline

Write a single byte to this Device.

Parameters

c	The byte to write.

Returns: True iff the byte was written.

Note: This method may set ecode.

The documentation for this class was generated from the following file:

include/wfio/device.h
